Overview of FCC40G Road Cleaning Blower

　　I. Structural Features

　　The FCC40G Road Cleaning Blower is a newly designed road sweeper introduced by our company. Compact and lightweight, it is positioned to fully replace the existing FCC D Series sweeper with a trailer.

　　1. Compact Design for Pickup Truck Mounting

　　The G Series features a direct-drive fan-engine connection. Its specially designed centrifugal fan impeller is directly bonded to the engine flywheel, eliminating the belt drive and centrifugal clutch system found in D Series belt-driven sweepers. This results in a smaller footprint, lighter weight, and lower failure rate, enabling direct mounting on pickup trucks for enhanced versatility.

　　2. Three-dimensional streamlined air duct for superior sweeping performance

　　The specialized blower housing, engineered for sweeping operations, incorporates a three-dimensional streamlined air duct. Airflow is directed from the upper section of the blower housing along rear, downward, and left-angled paths to the left side of the carrier vehicle. This design positions the effective sweeping point close to the carrier's left side, making it particularly crucial for sweeping emergency lanes on highways.

　　II. Basic Specifications of FCC40G-760 Model

　　1. Engine

　　Equipped with a 490-type four-cylinder diesel engine rated at 2400 rpm and 40 kW.

　　2. Blower

　　Features a dedicated high-pressure centrifugal blower matched to engine parameters. With a 760mm impeller diameter, it delivers over 7000 m³/h airflow and over 7000 Pa pressure at rated engine speed, ensuring powerful airflow.

　　3. Air Outlet

　　Features a specially designed air duct tailored for highway sweeping operations. The duct is height-adjustable via telescopic extension and can pivot to accommodate varying operational requirements. It folds up during non-operation to prevent contact.

　　4. Remote Control System

　　Features a proprietary microcontroller-based integrated control system developed by our company, paired with an 8-channel industrial-grade wireless remote controller. All operational functions—including air duct folding/retraction, engine start/stop, engine speed adjustment, and mist dust suppression system activation—can be executed via the remote, enabling the carrier vehicle operator to control operations without leaving the cab.

　　5. Water Mist Dust Suppression Function

　　Equipped with an electromagnetic water valve and atomization interface. Water from the user's own tank flows through supply lines to the air outlet, where high-pressure air creates a water mist for effective dust control.

　　The electromagnetic water valve can be conveniently controlled via the remote control.

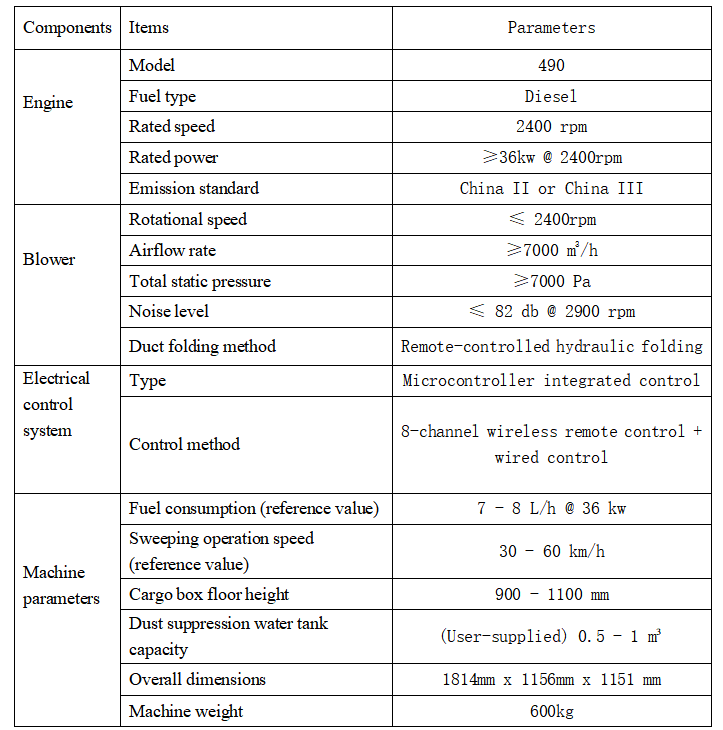

　　III. Main Technical Parameters

　　Translated with DeepL.com (free version)

　　Baoqing Li

　　Dep. of Technology

　　baoqing@equationtec.com

　　July 2, 2025
